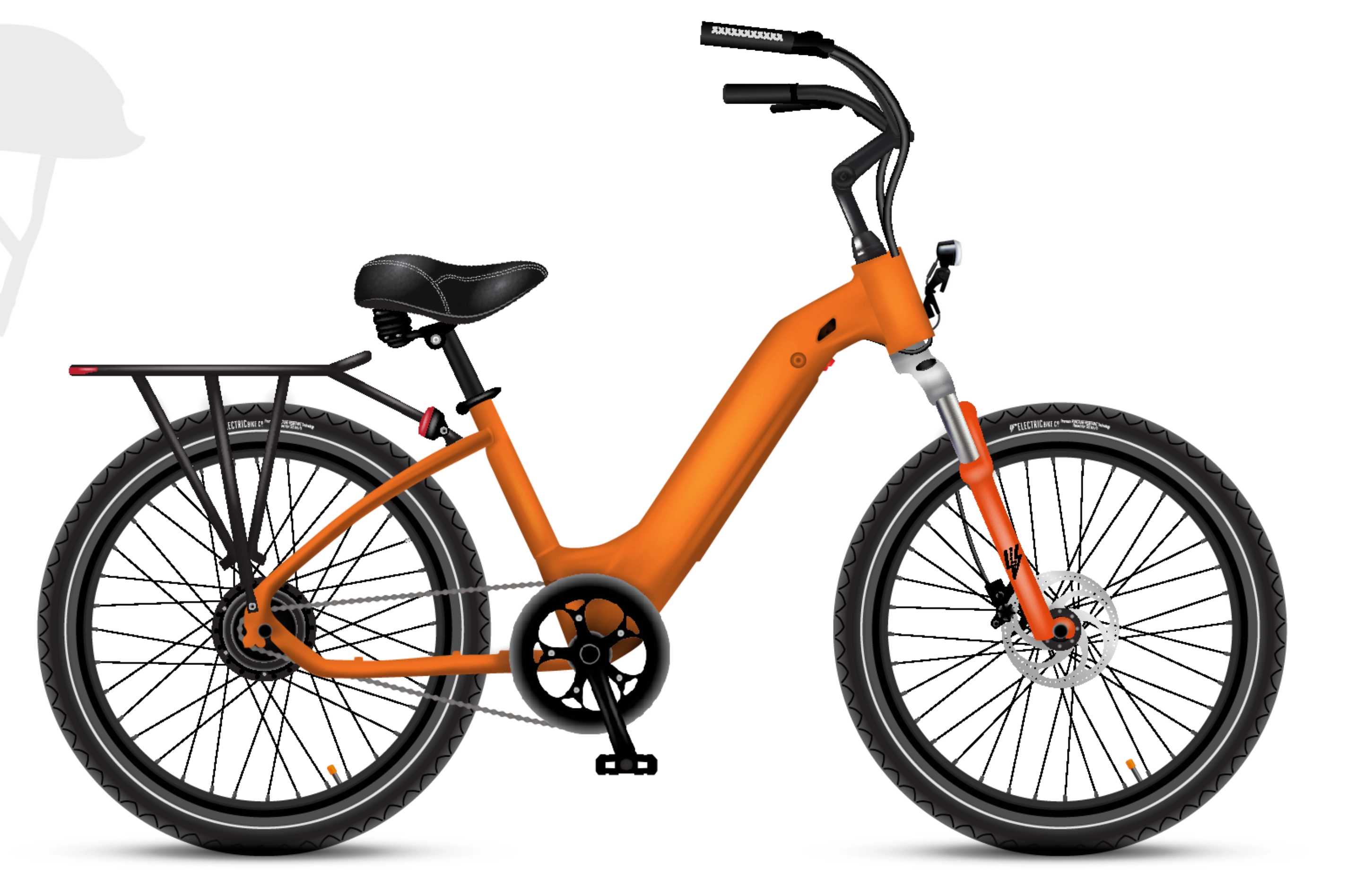

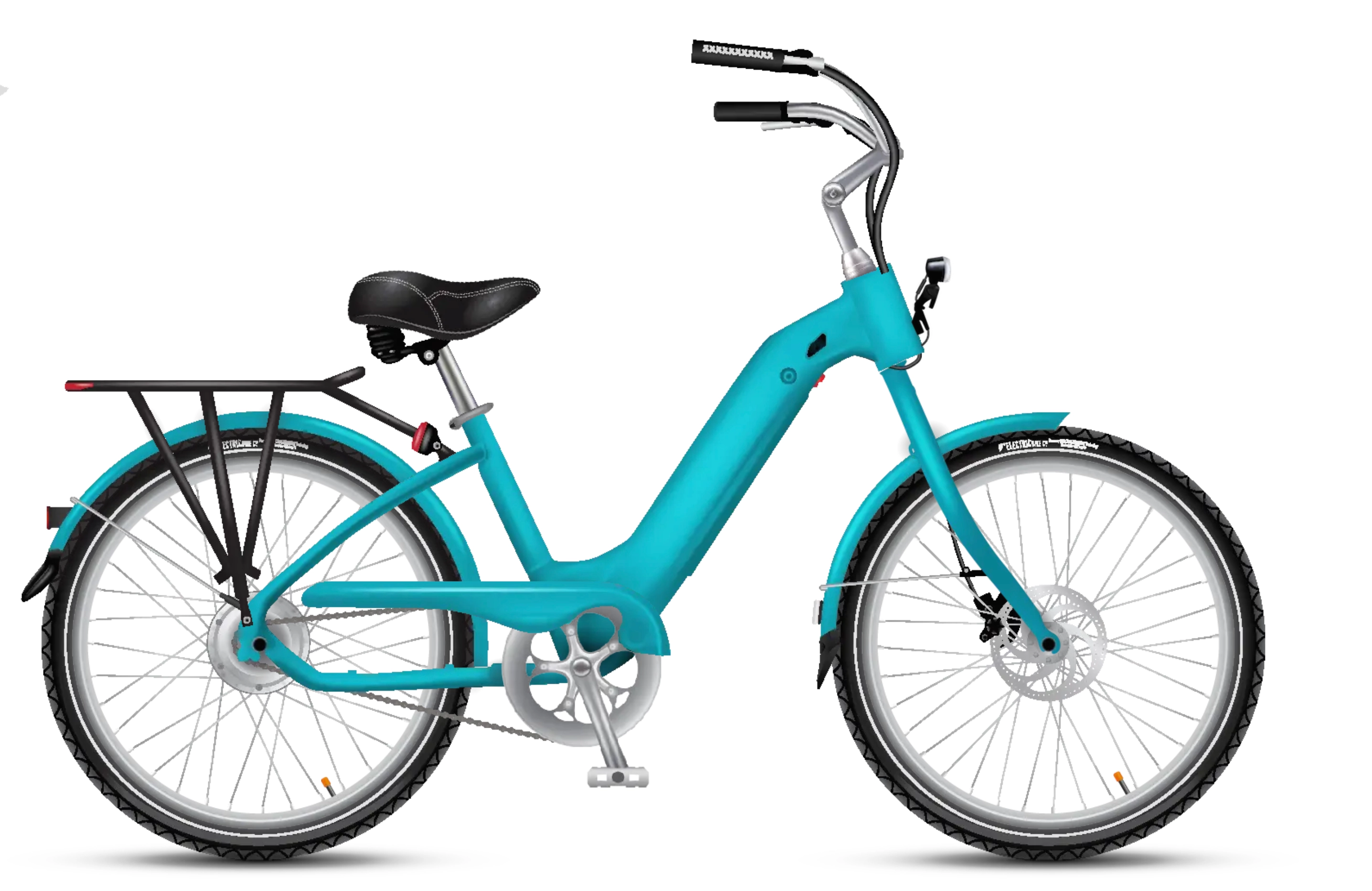

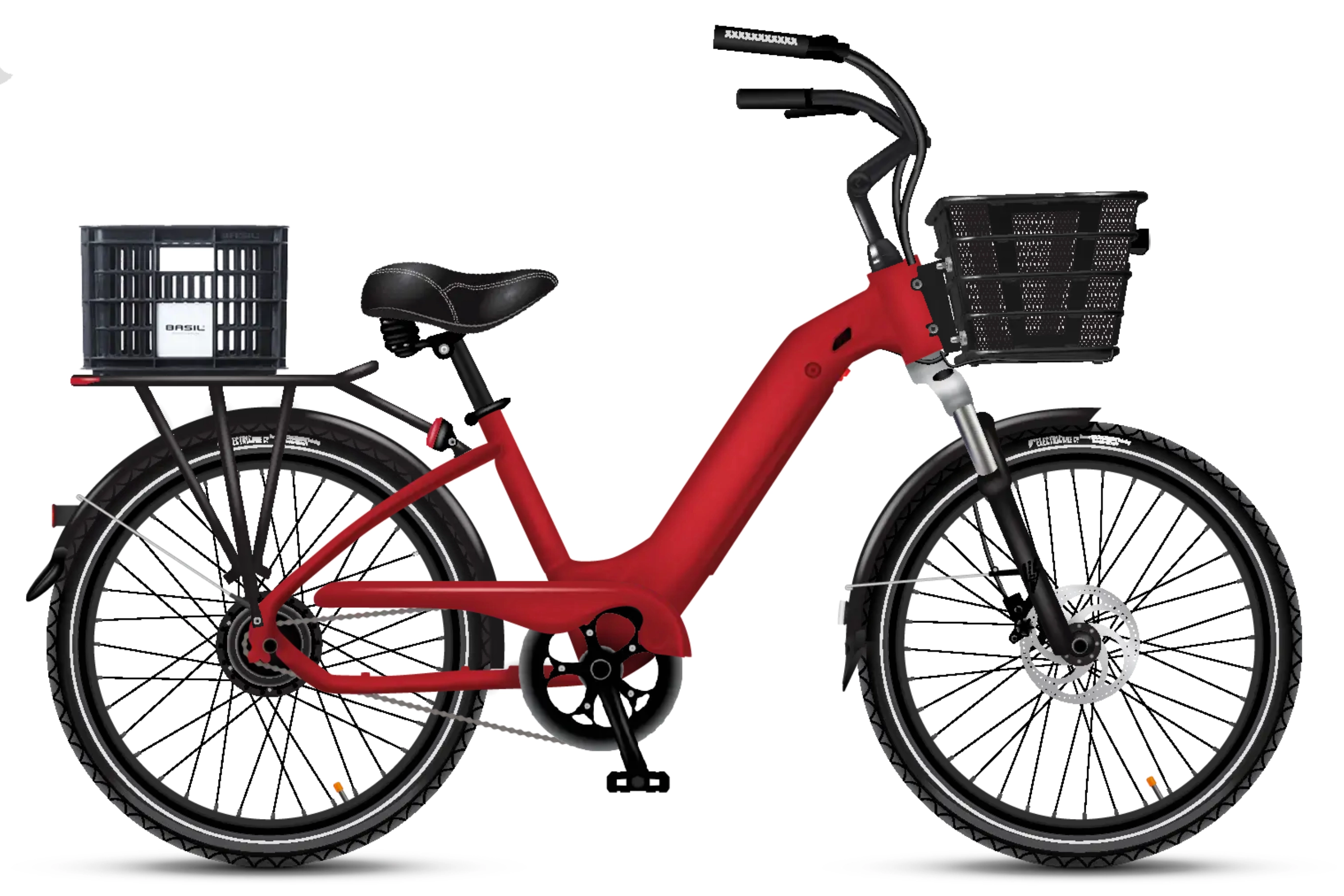

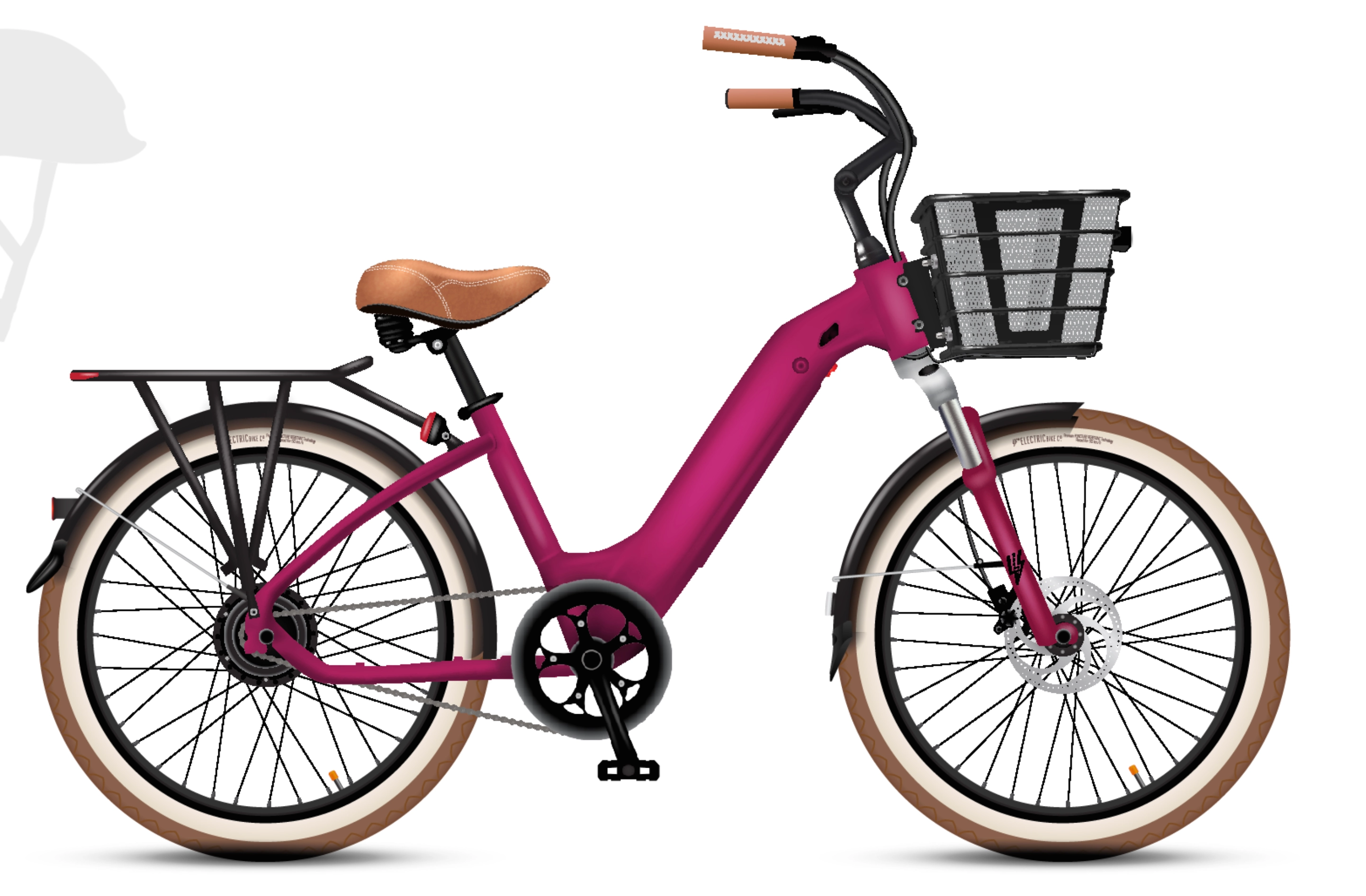

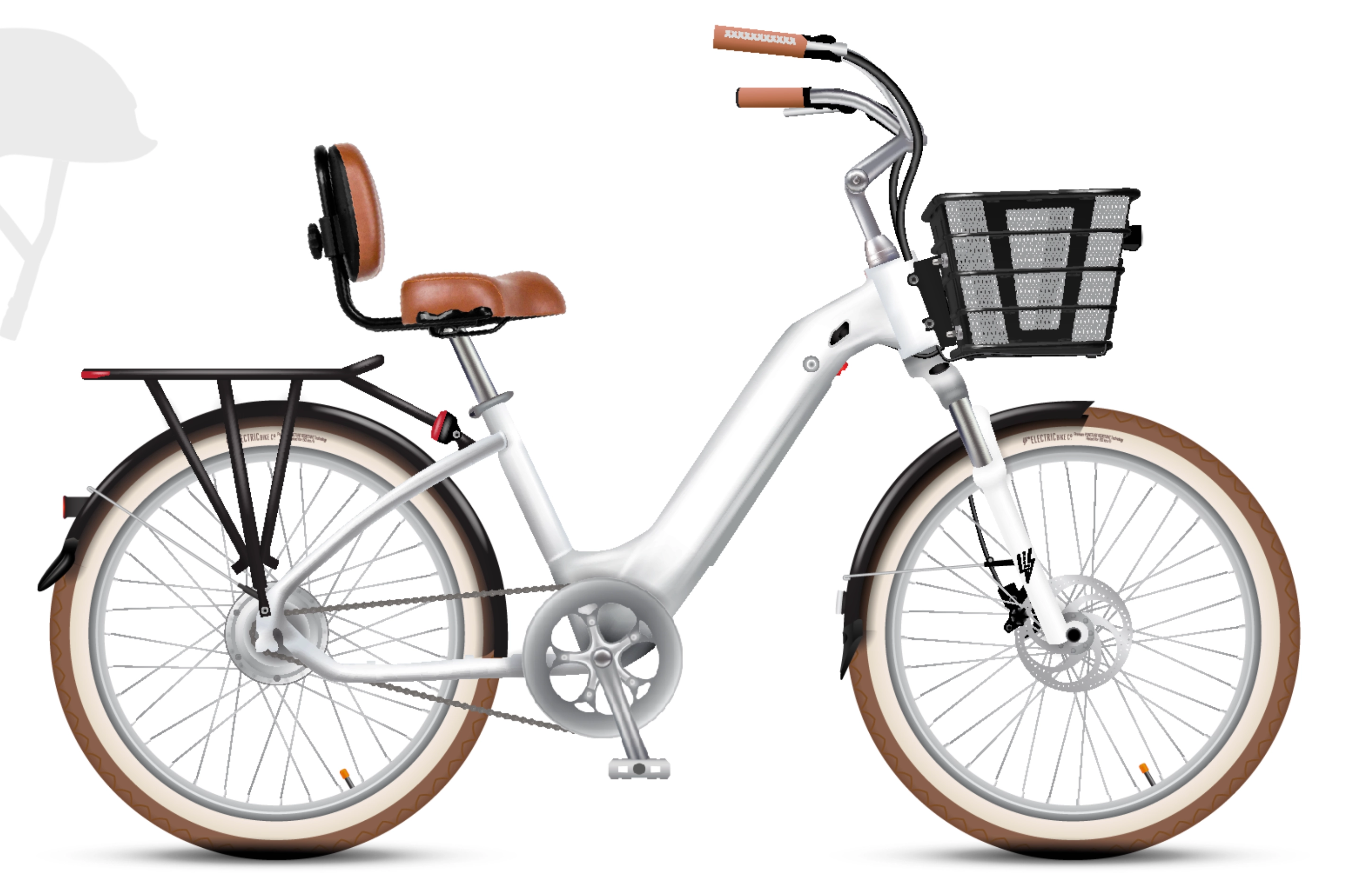

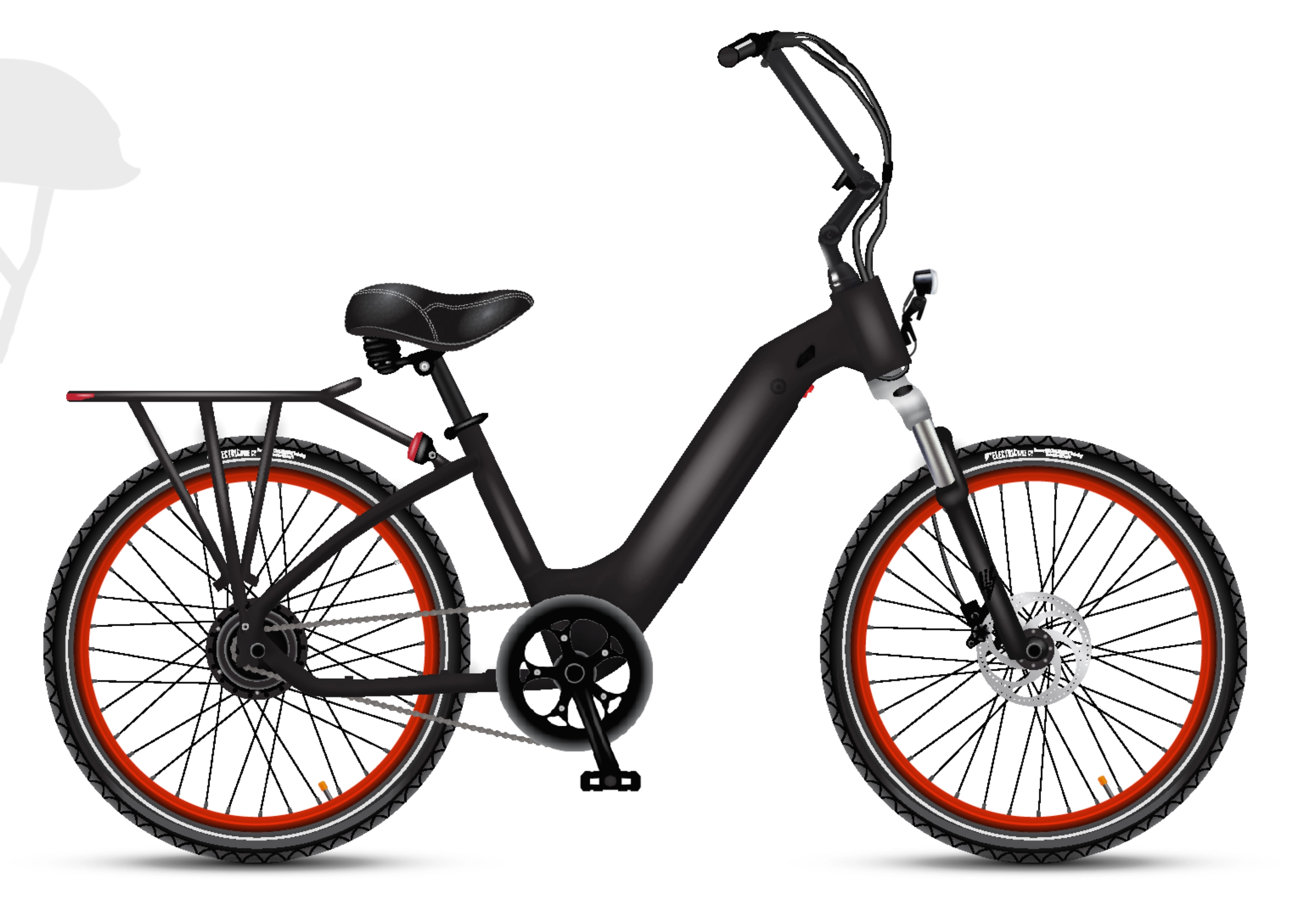

Electric Bike Company EBC Model R Step Thru Rugged Cruiser
CALIFORNIA E-BIKE INCENTIVE PROJECT APPROVED!
The Model R Blends all the premium features of our top-tier bikes, now at a more competitive starting price, with the same fully customizable options to make it a rugged off-road E-Bike
MOTOR: 10 Year Warranty 500W (750w peak)
BATTERY: 60 Mile 14ah (2 Year Warranty)
CHARGER: 2-5 Amp - Your choice
BRAKES: 2 Piston Hydraulic Disc, 180mm Stainless, Motor cutoff safety sensor
CHAIN: Stainless, Durable Rust resistant
DRIVETRAIN: 7-Speed or Direct Drive
FORK: Rigid
GRIPS: Hand stitched Leather or Rubber Cushion with palm support
HANDLEBARS: Your Choice
KICKSTAND: Heavy Duty, Non-Slip sole
LCD SCREEN: Multi Level, Color LCD, USB Charging
LIGHTS: LED F/R
PEDALS: Large platform comfort non-slip rubber sealed bearings
WHEELS: Double walled, Stainless , 13G Spokes, Brass Nipples Sealed Bearing hub
SEAT: Large High Density Foam
STEM: Alloy 120mm Bar clamp, Die 25.4mm, Quilt 25.4 x 180mm, Adj. 0-60 degrees
TIRES: Puncture resistant, reflective sidewall, Rust proof valve, 26” or 24” x 2.25
THROTTLE: Thumb or Throttle
TOP SPEED: 20-28 PAS
PEDAL ASSIST: Level 1-5
FRAME: Aluminum 6061, Hydro Formed
BOTTOM BRACKET: 124.5mm Alloy cups, Dbl snap seals
CRANKSET: 56T Alloy Chainring 170mm Crank in Alloy 1/2”x3/32
REAR COG: 16
CASSETTE: Shimano Tourney MF-TZ500, 7-Speed
RIM: Multiple Freewheel, 14-28T, 26” or 24”, Dbl wall, 36 hole, 13G Stainless
TUBES: Heavy Duty Schrader 26” or 24” x 1.75 - 2.2125
SPOKES: 36 Spokes per rim
HUBS: 36 Spoke, Sealed cartridge bearing, 9mm Quick Release, 100mm Axle 6 bold disc rotor compatible
SEATPOST: 30.4mm x 300mm
SEAT CLAMP: Quick release
WEIGHT: 53lbs
MAX PAYLOAD: 420lbs
- Awarded top rated E-Cruiser in USA by Electric Bike Report.
- Warranty: 5 yr Battery; 10 yr Motor Frame.
ALL Color Choices can be placed in notes upon checkout, If you have any problems or concerns please feel FREE to call us direct and we will assist 714 744-0266
- All bikes DELIVERED Fully-Built 🇺🇸 (Nationwide)
- Inspected, Tested, and READY-TO-RIDE
- (No need to assemble or hire a technician)
BUILD TIME
4-5 Weeks stock colors
5-6 Weeks Custom colors
